Availability: | |
---|---|
1.5inch - 3.813inch
Ruixin
BO Selective Shifting Tool Wireline
Alloy Steel&Nickel Alloy
China Baoji
Wireline Operation And Slickline Operation
Standard

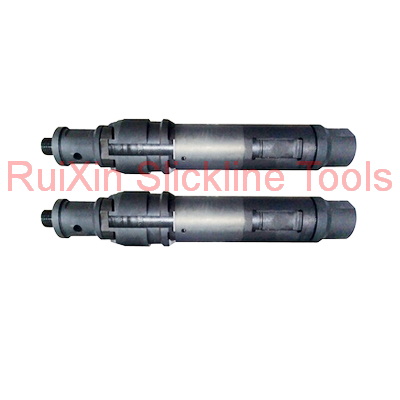

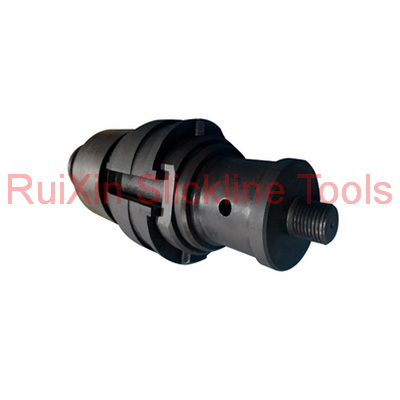

The BO Selective Shifting Tool Wireline is used to locate and either open or close a typical Halliburton style XA / XO sliding side door.
BO Selective Shifting Tool Wireline operates with a “J” slot mechanism that allows the tool to actuate and locate corresponding shifting profile selectively.The BO Selective positioning Tool is designed to selectively shift the inner sleeve of a sliding side door circulating device into the down position only.
Size | Fishing neck | Connection |
1.5" | 1.187" | 15/16-10UN |
1.875" | 1.375" | 15/16-10UN |
2.313" | 1.75" | 15/16-10UN |
2.75" | 2.313" | 1-1/16-10UN |
3.688" | 3.125" | 1-1/16-10UN |
3.813" | 3.125" | 1-1/16-10UN |
1. Before going down the well, check the size of the pop-up of the key and positioning claw;
2. When not in use temporarily, apply grease to the connecting thread and put it with a protective wire.
The BO Selective Shifting Tool Wireline is used to locate and either open or close a typical Halliburton style XA / XO sliding side door.
BO Selective Shifting Tool Wireline operates with a “J” slot mechanism that allows the tool to actuate and locate corresponding shifting profile selectively.The BO Selective positioning Tool is designed to selectively shift the inner sleeve of a sliding side door circulating device into the down position only.
Size | Fishing neck | Connection |
1.5" | 1.187" | 15/16-10UN |
1.875" | 1.375" | 15/16-10UN |
2.313" | 1.75" | 15/16-10UN |
2.75" | 2.313" | 1-1/16-10UN |
3.688" | 3.125" | 1-1/16-10UN |
3.813" | 3.125" | 1-1/16-10UN |
1. Before going down the well, check the size of the pop-up of the key and positioning claw;
2. When not in use temporarily, apply grease to the connecting thread and put it with a protective wire.
