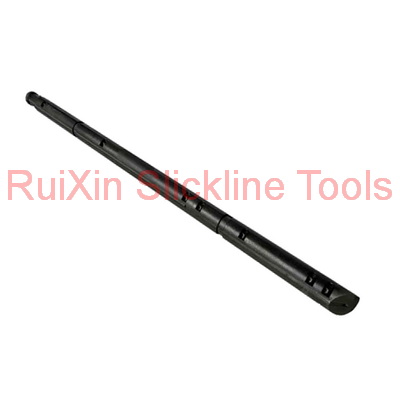

GO Devil Wireline

The GO Devil wireline is used to cut the stuck tool string wire.
Availability:
  • 1.5inch 1.875inch 2.125inch 2.5inch
  • Ruixin
  • GO Devil Wireline
  • Alloy Steel&Nickel Alloy
  • China Baoji
  • Wireline Operation And Slickline Operation
  • Standard

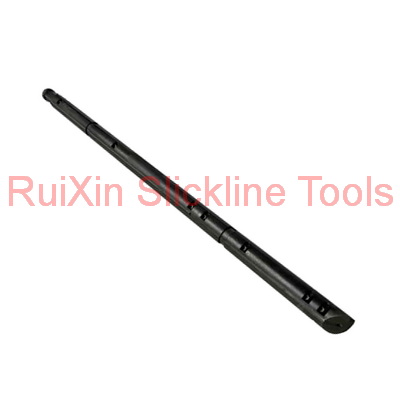

GO Devil Wireline Manufacturer - Ruixin

The GO Devil wireline is used to cut the stuck tool string wire.

GO Devil Wireline Overview

The GO Devil Cutter Bar type is composed of a solid rod with a groove and a guide surface. It goes into the well in a conventional way. If there is no foreign matter on the rope cap, the inclined plane of the cutter will directly cut the steel wire on the rope cap. When the steel wire tool is seriously buried by sand, debris or steel wire, or it is not cut at one time. It can be struck again with a flat-bottomed wire cutter.

The steel wire cutter is provided with a positioning groove for installing the slip centralizer, which can be used in large diameter oil pipes after installing the slip centralizer.

GO Devil Wireline commonly used technical parameters

Size

Fishing neck

length

Applicable steel wire specification

1.5"

1.375"

2ft

0.092"~0.108"/7/32"~3/16"

1.5"

1.375"

3ft

0.092"~0.108"/7/32"~3/16"

1.5"

1.375"

5ft

0.092"~0.108"/7/32"~3/16"

1.875"

1.75"

2ft

0.092"~0.108"/7/32"~3/16"

1.875"

1.75"

3ft

0.092"~0.108"/7/32"~3/16"

1.875"

1.75"

5ft

0.092"~0.108"/7/32"~3/16"

2.125"

1.75"

2ft

0.092"~0.108"/7/32"~3/16"

2.125"

1.75"

3ft

0.092"~0.108"/7/32"~3/16"

2.125"

1.75"

5ft

0.092"~0.108"/7/32"~3/16"

2.5"

2.313"

2ft

0.092"~0.108"/7/32"~3/16"

2.5"

2.313"

3ft

0.092"~0.108"/7/32"~3/16"

2.5"

2.313"

5ft

0.092"~0.108"/7/32"~3/16"

GO Devil Wireline Structural characteristics and use

The GO Devil Cutter Bar type  is composed of a grooved inclined-bottom solid rod and a baffle. The baffle is connected with the grooved solid rod by screws. When in use, the baffle is removed, the steel wire is clamped into the groove, and then the baffle is installed. The steel wire cutter runs down the steel wire into the well and cuts the steel wire at the head of the rope cap. Then, the wire cutter and tool string are fished out with a fishing device.

GO Devil Wireline Precautions

When using the inclined bottom wire cutter, make sure there is no foreign matter above the rope cap. Otherwise it cannot cut the steel wire. Secondly, after using the inclined bottom wire cutter, timely and carefully maintain it to prolong the service life of the tool.
