1.25inch - 4inch
Ruixin
HFH Running Tool
Alloy Steel&Nickel Alloy
China Baoji
Wireline & Slickline
Standard

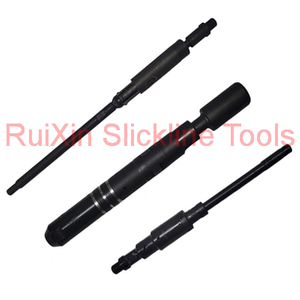

The HFH running tool is a special tool for putting X/XN-type lock cores. It can selectively put the fluid control device with HFH-type lock cores into the HFH-type seating joints in the well.
Number | Size | Fishing | Connection |
1 | 1-1/4＂ | 1＂ | 5/8-11UN |
2 | 1-1/2＂ | 1.187＂ | 15/16-10UN |
3 | 2＂ | 1.375＂ | 15/16-10UN |
4 | 3＂ | 1.75＂ | 1-1/16-10UN |
5 | 3-1/2＂ | 2.313＂ | 1-1/16-10UN |
6 | 4＂ | 2.313＂ | 1-1/16-10UN |
HFH running tool is mainly composed of fishing neck, main barrel, stop pin, main spring, spring sleeve, positioning claw spring, split ring, positioning claw, positioning claw sleeve, crescent block, fishing claw and mandrel.
1. After use, check the performance of the tool, and apply grease for storage to ensure the normal use next time;
2. Before use, check whether the elastic claw can contract freely, and use it only when the performance is normal.
The HFH running tool is a special tool for putting X/XN-type lock cores. It can selectively put the fluid control device with HFH-type lock cores into the HFH-type seating joints in the well.
Number | Size | Fishing | Connection |
1 | 1-1/4＂ | 1＂ | 5/8-11UN |
2 | 1-1/2＂ | 1.187＂ | 15/16-10UN |
3 | 2＂ | 1.375＂ | 15/16-10UN |
4 | 3＂ | 1.75＂ | 1-1/16-10UN |
5 | 3-1/2＂ | 2.313＂ | 1-1/16-10UN |
6 | 4＂ | 2.313＂ | 1-1/16-10UN |
HFH running tool is mainly composed of fishing neck, main barrel, stop pin, main spring, spring sleeve, positioning claw spring, split ring, positioning claw, positioning claw sleeve, crescent block, fishing claw and mandrel.
1. After use, check the performance of the tool, and apply grease for storage to ensure the normal use next time;
2. Before use, check whether the elastic claw can contract freely, and use it only when the performance is normal.
