1.0inch - 6.0inch
Ruixin
Lead Impression Block Wireline
Alloy Steel&Nickel Alloy
China Baoji
Wireline Operation And Slickline Operation
Standard

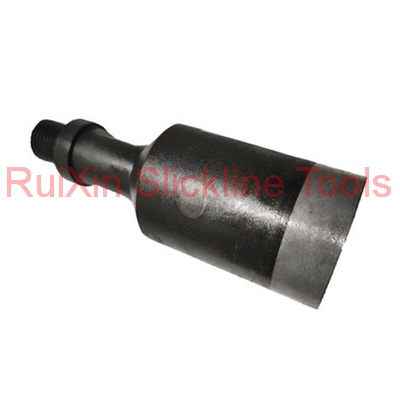

The Lead Impression Block Wireline is used to print the shape and size of the fish in the well, so as to determine the tools and measures that should be used in the next fishing operation.
Tools O.D. | Fishneck O.D. | Connection |
1.0＂～1.5＂ | 1.187＂ | 15/16-10UN |
1.5＂～2.0＂ | 1.375＂ | 15/16-10UN |
2.0＂～2.5＂ | 1.375＂ | 15/16-10UN |
2.5＂～3.0＂ | 1.75＂ | 1-1/16-10UN |
3.0＂～4.0＂ | 2.313＂ | 1-1/16-10UN |
4.0＂～5.0＂ | 2.313＂ | 1-1/16-10UN |
5.0＂～6.0＂ | 3.125＂ | 1-9/16-10UN |
Special specifications can be provided according to customer requirements
1. The Lead Impression Block Wireline is a tool for filling lead in the pipe sleeve. When the lead print hits a falling object with a higher hardness downhole, it deforms, and the shape and size of the falling object are recorded. After use, the traces can be cleaned up, stored carefully, and can be recycled until the exposed lead body is used up.
2. When going down the well, it is connected to the basic tool string to go down the well.
The Lead Impression Block Wireline must be well protected during transportation and storage, and no bumps are allowed.
The Lead Impression Block Wireline is used to print the shape and size of the fish in the well, so as to determine the tools and measures that should be used in the next fishing operation.
Tools O.D. | Fishneck O.D. | Connection |
1.0＂～1.5＂ | 1.187＂ | 15/16-10UN |
1.5＂～2.0＂ | 1.375＂ | 15/16-10UN |
2.0＂～2.5＂ | 1.375＂ | 15/16-10UN |
2.5＂～3.0＂ | 1.75＂ | 1-1/16-10UN |
3.0＂～4.0＂ | 2.313＂ | 1-1/16-10UN |
4.0＂～5.0＂ | 2.313＂ | 1-1/16-10UN |
5.0＂～6.0＂ | 3.125＂ | 1-9/16-10UN |
Special specifications can be provided according to customer requirements
1. The Lead Impression Block Wireline is a tool for filling lead in the pipe sleeve. When the lead print hits a falling object with a higher hardness downhole, it deforms, and the shape and size of the falling object are recorded. After use, the traces can be cleaned up, stored carefully, and can be recycled until the exposed lead body is used up.
2. When going down the well, it is connected to the basic tool string to go down the well.
The Lead Impression Block Wireline must be well protected during transportation and storage, and no bumps are allowed.
