1.25inch 1.75inch 1.875inch 2.125inch 2.5inch
RuiXin
Rope Sockets
Cast aluminum
China Baoji
Wireline Operation And Slickline Operation
Standard

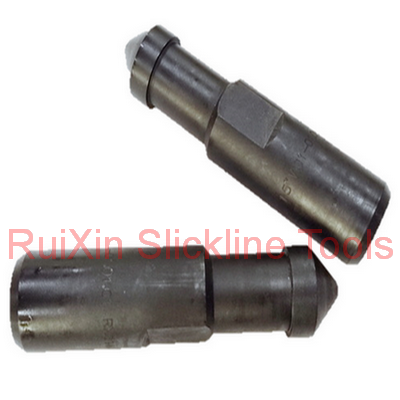

The rope socket is used to securely attach wireline to the toolstring.
Wireline Rope Sockets are used as a method of connecting the Slickline to the tool string, from wire sizes from 0.108”up to 0.160”
Assembly consists of a body with external fishing neck, sleeve and brass wedge (Rope Sockets) The Rope Sockets is grooved to accommodate the wire and comes complete with a securing grub screw The more pull applied on the Slickline, the more the Rope Sockets pulls into the sleeve giving a tighter grip on the Slickline
1. Rope Sockets are ordered to suit the wire size being deployed
2. Simple, low maintenance design
3. Rope Sockets are used to attach wireline to the toolstring and are predominately used with wireline sizes from 0.092” to 0.160”* dependant on size. The Wireline Rope Socket assembly consists of a body with an external fishing neck, sleeve and a brass wedge (“Rope Sockets”) which is grooved to accommodate the wire and comes complete with a securing grub screw.
The rope socket is used to securely attach wireline to the toolstring.
Wireline Rope Sockets are used as a method of connecting the Slickline to the tool string, from wire sizes from 0.108”up to 0.160”
Assembly consists of a body with external fishing neck, sleeve and brass wedge (Rope Sockets) The Rope Sockets is grooved to accommodate the wire and comes complete with a securing grub screw The more pull applied on the Slickline, the more the Rope Sockets pulls into the sleeve giving a tighter grip on the Slickline
1. Rope Sockets are ordered to suit the wire size being deployed
2. Simple, low maintenance design
3. Rope Sockets are used to attach wireline to the toolstring and are predominately used with wireline sizes from 0.092” to 0.160”* dependant on size. The Wireline Rope Socket assembly consists of a body with an external fishing neck, sleeve and a brass wedge (“Rope Sockets”) which is grooved to accommodate the wire and comes complete with a securing grub screw.
