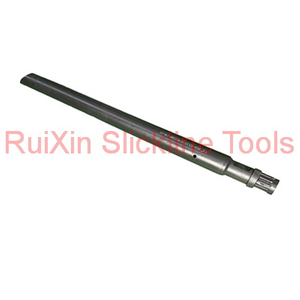

The Slickline Dump Bailer is used to dump acid, mercury and other liquids on the top of any device in the wellbore. When operating, the pin is sheared downward, and the baffle is broken to make the liquid flow out.
Size | Fishing neck | Connection | PN |
1.5＂ | 1.375＂ | 15/16-10UN | W2*-0*.0*.0* |
1.75＂ | 1.375＂ | 15/16-10UN | W2*-0*.0*.0* |
2.0＂ | 1.75＂ | 1-1/16-10UN | W2*-0*.0*.0* |
2.5＂ | 2.313＂ | 1-1/16-10UN | W2*-0*.0*.0* |
3.0＂ | 2.313＂ | 1-1/16-10UN | W2*-0*.0*.0* |
3.5＂ | 2.313＂ | 1-1/16-10UN | W2*-0*.0*.0* |
Tools can be made in any size required.
When going down the well, the dumping barrel is filled with liquid. After going down to the position, the shearing pin is jarred downwards, so that the shearing barrel breaks the baffle and the liquid flows out.
1. During assembly, check whether the O-ring is damaged and replace it in time.
2. When using, carefully check whether the parts are connected well.
3. When not in use for the time being, apply lubricating oil to the thread and put away the thread protector.
.
The Slickline Dump Bailer is used to dump acid, mercury and other liquids on the top of any device in the wellbore. When operating, the pin is sheared downward, and the baffle is broken to make the liquid flow out.
Size | Fishing neck | Connection | PN |
1.5＂ | 1.375＂ | 15/16-10UN | W2*-0*.0*.0* |
1.75＂ | 1.375＂ | 15/16-10UN | W2*-0*.0*.0* |
2.0＂ | 1.75＂ | 1-1/16-10UN | W2*-0*.0*.0* |
2.5＂ | 2.313＂ | 1-1/16-10UN | W2*-0*.0*.0* |
3.0＂ | 2.313＂ | 1-1/16-10UN | W2*-0*.0*.0* |
3.5＂ | 2.313＂ | 1-1/16-10UN | W2*-0*.0*.0* |
Tools can be made in any size required.
When going down the well, the dumping barrel is filled with liquid. After going down to the position, the shearing pin is jarred downwards, so that the shearing barrel breaks the baffle and the liquid flows out.
1. During assembly, check whether the O-ring is damaged and replace it in time.
2. When using, carefully check whether the parts are connected well.
3. When not in use for the time being, apply lubricating oil to the thread and put away the thread protector.
.
