Ruixin

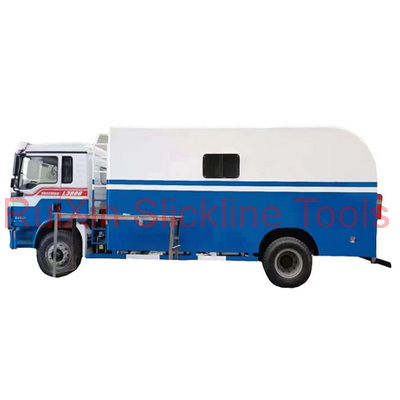

Slickline Unit Truck
Cast aluminum
China Baoji
Wireline Operation And Slickline Operation
Standard
The winches used in offshore wireline unit are skid-mounted, mainly for easy hoisting and transportation, mainly to facilitate lifting and transportation, the unit is designed to operate in various oilfield environments, and can be retrofitted for logging and perforating Applied cable car.
Utilization of rear truck cab as operational platform "Hit it now" drum response for quick down-hole tool action.
Multiple size drum draw works to fit desired slickline and braided line sizes, split drum or double drum available Winch Hoist Specification: transmission chain drive with hydraulic motor. Drum Wireline Capacity:Configured to customer requirements
The skid-mounted wire winch is generally divided into two parts: the power part and the winch part. The power part is composed of a diesel engine (electric motor) and a hydraulic oil pump. The diesel engine (electric motor) drives the hydraulic oil pump to transport the power fluid to the winch through a high-pressure hose. The winch is mainly composed of hydraulic motor, transmission mechanism, control mechanism, depth counting system and wire drum. For double drum winches, two drums are installed at the same time. The diesel engine drives the hydraulic pump to output hydraulic oil, which transmits power through the high-pressure hose. If the direction of circulation is different, control the rotation direction of the winch; control the amount of circulating oil to control the speed of the winch. The control of this direction and the amount of oil is accomplished through the pressure regulating valve, and the operating table of the winch is equipped with a tension gauge
The advantages of wire winches are customization, high efficiency and easy maintenance. The configuration of the operating room, winch model and pressure control panel can also be flexibly customized.
The winches used in offshore wireline unit are skid-mounted, mainly for easy hoisting and transportation, mainly to facilitate lifting and transportation, the unit is designed to operate in various oilfield environments, and can be retrofitted for logging and perforating Applied cable car.
Utilization of rear truck cab as operational platform "Hit it now" drum response for quick down-hole tool action.
Multiple size drum draw works to fit desired slickline and braided line sizes, split drum or double drum available Winch Hoist Specification: transmission chain drive with hydraulic motor. Drum Wireline Capacity:Configured to customer requirements
The skid-mounted wire winch is generally divided into two parts: the power part and the winch part. The power part is composed of a diesel engine (electric motor) and a hydraulic oil pump. The diesel engine (electric motor) drives the hydraulic oil pump to transport the power fluid to the winch through a high-pressure hose. The winch is mainly composed of hydraulic motor, transmission mechanism, control mechanism, depth counting system and wire drum. For double drum winches, two drums are installed at the same time. The diesel engine drives the hydraulic pump to output hydraulic oil, which transmits power through the high-pressure hose. If the direction of circulation is different, control the rotation direction of the winch; control the amount of circulating oil to control the speed of the winch. The control of this direction and the amount of oil is accomplished through the pressure regulating valve, and the operating table of the winch is equipped with a tension gauge
The advantages of wire winches are customization, high efficiency and easy maintenance. The configuration of the operating room, winch model and pressure control panel can also be flexibly customized.
