1.25inch~5inch
Ruixin
Wireline Gauge Cutter
Alloy Steel&Nickel Alloy
China Baoji
Wireline Operation And Slickline Operation
Standard
A wireline gauge cutter is a wireline tool designed to gauge and scrape clean the wall of the tubing.
The gauge cutter O.D. should be selected very close to the I.D. of the tubing in which it is run. It should be used prior to running or pulling a subsurface control. This assures the operator that the tubing is clear down to the point to which a sub surface device has to be run.
OD. | Fishing neck | Connection |
1.25＂-1.5＂ | 1.187＂ | 15/16-10UN |
1.5＂-2＂ | 1.375＂ | 15/16-10UN |
2＂-2.5＂ | 1.375＂ | 15/16-10UN |
2.5＂-3＂ | 1.75＂ | 1-1/16-10UN |
3＂-4＂ | 1.75＂ | 1-1/16-10UN |
4＂-5＂ | 2.313＂ | 1-9/16-10UN |
Note: More customized parts are available upon request.

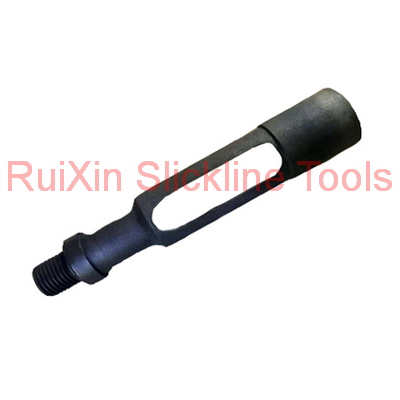

The top of gauge cutter is external thread (or quick male joint) and fishing neck and the bottom is the cutting edge of the gauge cutter. After quenching treatment, the surface hardness in this area is high so as to scrape off wax, rust and rock waste smoothly. There is a big clearance hole in the middle of gauge cutter to discharge the rock waste smoothly and avoid stacking of rock waste and others and the tool cannot be operated normally.
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
