￠600～￠1500
Ruixin

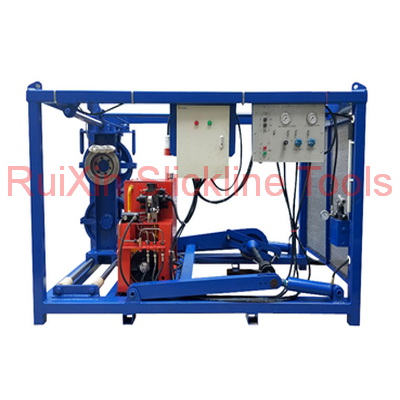

Wireline Hydraulic Spooler
Alloy Steel&Nickel Alloy
China Baoji
Wireline & Slickline
Standard
The working principle of the Wireline Hydraulic Spooler is that the hydraulic system drives the hydraulic motor, the hydraulic motor transmits power to the chuck through the chain, the chuck drives the drum to rotate, and the cable is wound on the drum at a uniform speed.
This equipment is made of steel frame structure and controlled by panel centralized operation. It has the characteristics of high strength and easy operation.
The wire cable reel consists of a frame assembly, a motor, a drum bracket, a lead screw assembly, a hydraulic cylinder, a motor controller, etc.
The main body of the frame is welded with square tubes, which is the main bearing structure of the rope reel. The two ends of the drum can be adjusted by the lead screw according to the size and length of the steel drum, and the steel drum is locked and supported to fix it, and the screws on the dial are positioned on the section of the drum to drive the drum to rotate. The roller support is raised and lowered under the operation of the hydraulic cylinder, which is labor-saving and safe.
1. When the wire reel is working, do not get close to the motor and belt;
2. Before starting the motor, make sure that the carriage is locked;
3. When operating the lifting frame, master the speed and lift at a constant speed;
4. Pay attention to the lifting range of the lifting frame (the center height should not be greater than 600mm) to avoid damage to the pipeline;
5. When the drum is coiling the wire on the winch, the motor can not be started.
