1.5inch 2inch 3inch 4inch
Ruixin
Wireline SS Pulling Tool
Alloy Steel&Nickel Alloy
China Baoji
Wireline & Slickline
Standard

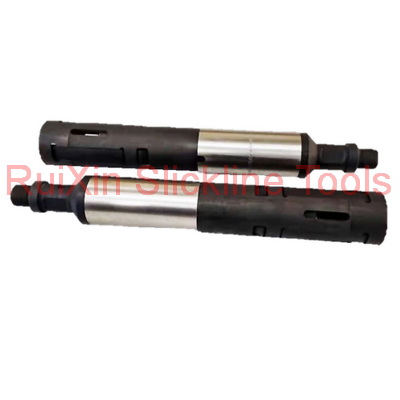

Wireline SS Pulling Tool - Shear Down Pulling Tools for External Fishing Neck
Size | Actual OD | Fishing neck | Connection | Grasping diameter |
1.5＂ | 1.437＂ | 1.187＂ | 15/16-10UN | 1.187＂ |
2＂ | 1.77＂ | 1.375＂ | 15/16-10UN | 1.375＂ |
3＂ | 2.84＂ | 2.313＂ | 1-1/16-10UN | 2.313＂ |
4＂ | 3.67＂ | 2.313＂ | 1-1/16-10UN | 3.125＂ |
More customized parts are available upon request.
Wireline SS Pulling Tool is a Shear down Pulling Tool for External Fishing Neck and designed to run and retrieve sub surface equipment with external fishing neck. The tool can be released by jarring down. Shear Down Pulling Tools: shear against the force on the Core, or Cylinder, for Internal Fishing Necks.
Care should be taken to inspect the dogs, skirt, and fishneck for damage such as metal fatigue, cracking , or deformity of the metal.
1. Before lowering the tool, inspect whether the connection threads of the tool are loose.
2. Maintain it in time after use.
