Wireline Tubing Broach

A wireline tubing broach is a hardened tempered cutting tool ued to broach out restrictions of whatever nature in the wellbore.
Availability:
  • 1.25inch - 5inch

  • Ruixin

  • Wireline Tubing Broach

  • Alloy Steel&Nickel Alloy

  • China Baoji

  • Wireline & Slickline

  • Standard

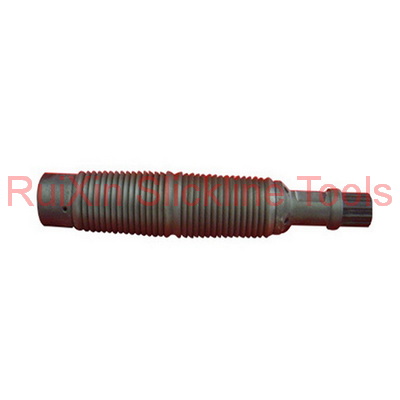

Wireline Tubing Broach Manufacturer - Ruixin

A wireline tubing broach is a hardened tempered cutting tool ued to broach out restrictions of whatever nature in the wellbore.

Wireline Tubing Broach General Technical Parameters

OD

Fishing neck

Connection

1.25"-1.5"

1.187"

15/16-10UN

1.5"-2"

1.375"

15/16-10UN

2"-2.5"

1.375"

15/16-10UN

2.5"-3"

1.75"

1-1/16-10UN

3"-4"

1.75"

1-1/16-10UN

4"-5"

2.313"

1-9/16-10UN

Note:More customized parts are available upon request.

Wireline Tubing Broach Structural features

The wireline tubing broach is composed of the body, scraper and pressing cap, in which, the pressing cap and body are supported with nail after being connected.

There are some gas vents on the body to discharge gas or liquid so as to prevent any end from shutting off pressure to cause difficult use or accidents.

The scraper is tapered whose both ends are small and middle is large. The hardness of blade reaches 47~52HRC after full quenching and tempering. The scraper can jar downward and upward.

Wireline Tubing Broach Notes

The wireline tubing broach is only used to scrape off a certain amount of obstructions. When the obstruction in the oil pipe is too thick or the oil pipe is deformed seriously, other tools shall be considered.
